AI Dashcam Device

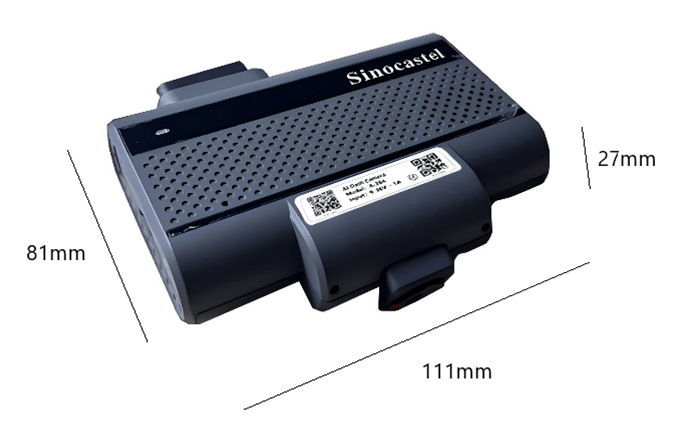

Sinocastel A-264 is an AI powered dash camera with 4G connectivity designed to reduce accidents, coach drivers, and save fleet costs. With built-in high performance ADAS and DMS algorithm it is able to actively assist drivers improve driving focus and safety by detecting unsafe driving, real-time in-cab feedback and coaching.
A-265(4G)
2 channel all-in-one Dash Camera

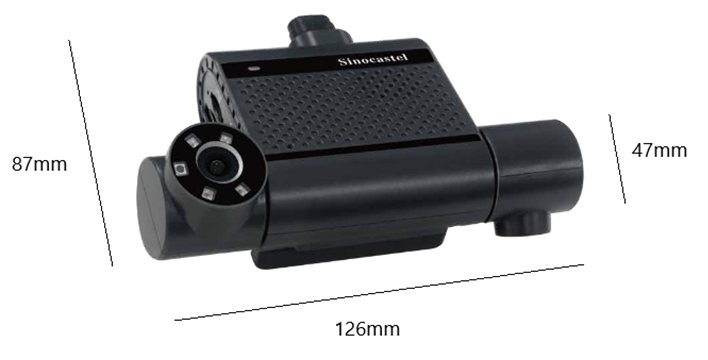

Sinocastel A-265 is a high performance 4G connected dash camera with a built in front facing camera and an inward facing camera designed to reliable record on the road and in the cabin, to clearly reconstruct the scene of an accident or emergency.
A-267(4G)
3 channel AI powered Dashcam

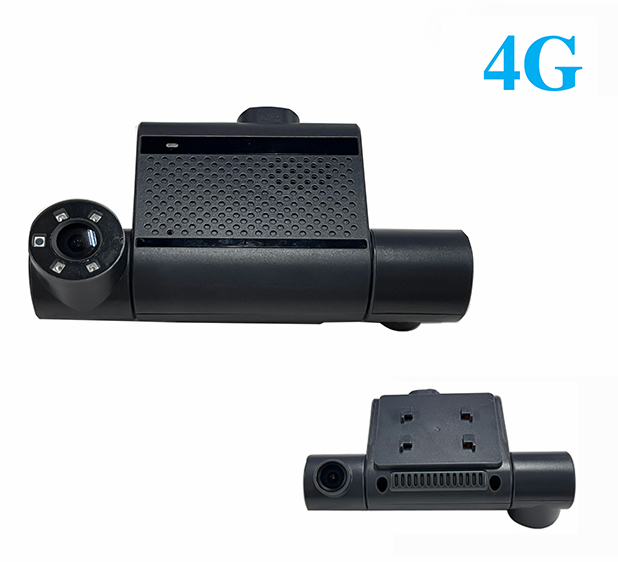

LTE Cat 4 connection, Sinocastel A-267 can connect to a 3rd external 720P camera.
It adopts H.265 video code technology to realize analog high definition video recording, storage and playback. Combined with 3G/4G wireless transmission technology and positioning technology, it can realize video recording, real-time uploading of car driving record information, driving behavior analysis and alarm evidence uploading. Remote monitoring, remote analysis and processing in real time through the control center.

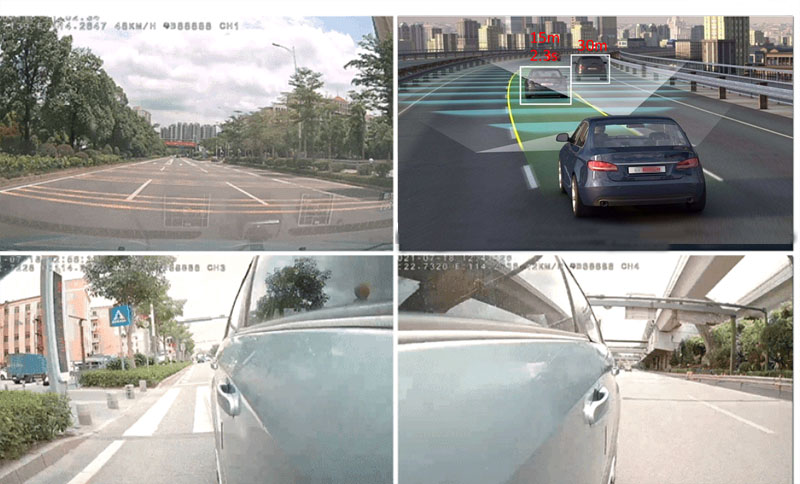

Supports the ADAS and DSM algorithm.
Plus, A-267 has interface for rich accessories, e.g. Panic button, temperature sensor, fuel level sensor, RFID reader etc.. An I/O harness is included in the package.
Interface
- InwarAV input: 3x BMW-4P connector
- Digital input: 4x digital inputs (One for ignition detection, three for general use)Digital
- output: 1x digital output (can drive relay)
- TF card: 2x TF slots
- SIM card: Micro SIM, push-push type
- Communication port: 1x RS-232 port
- Configuration port: Micro USBd facing camera: 720P IR
Camera
- Channel: 2 x 1080P or 4 x 720P
- Front camera: 720P or 1080P
- Inward facing camera: 720P
- IR Driver facing camera: 720p
- IR Rear camera: 720P
- Video encoding: H.264/H.265
Position Method: GNSS/A-GNSS
Storage: Up to 2 X 512GB 720P/H.265 270MB/CH/H 720P/H.264 510MB/CH/H
GNSS:
System: GPS/BDS/Glonas
Channels: 66
Sensitivity: -165dBm
Accuracy: 2.5m CEP
Time to first fix: Cold start: <35s (typ.) / Hot start: <1s (typ.)
Cellular: A-264LE (LTE Cat 4, EMEA):LTE FDD: B1/B3/B5/B7/B8/B20/B28; LTE TDD: B38/B40/B41;WCDMA: B1/B5/B8;GSM/GPRS: B3/B8 A-264LSA (LTE Cat 4, LA/AU): LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66;LTE TDD: B40;WCDMA: B1/B2/B4/B5/B8;GSM/GPRS: B2/B3/B5/B8
3-axis Accelerometer: Driving behavior detection Power supply : Input: 9-36VDC
Power consumption: 10W
Working Temperature: -20℃ ~ +70℃
Storage Temperature: -30℃ ~ +85℃
Weight: 250g

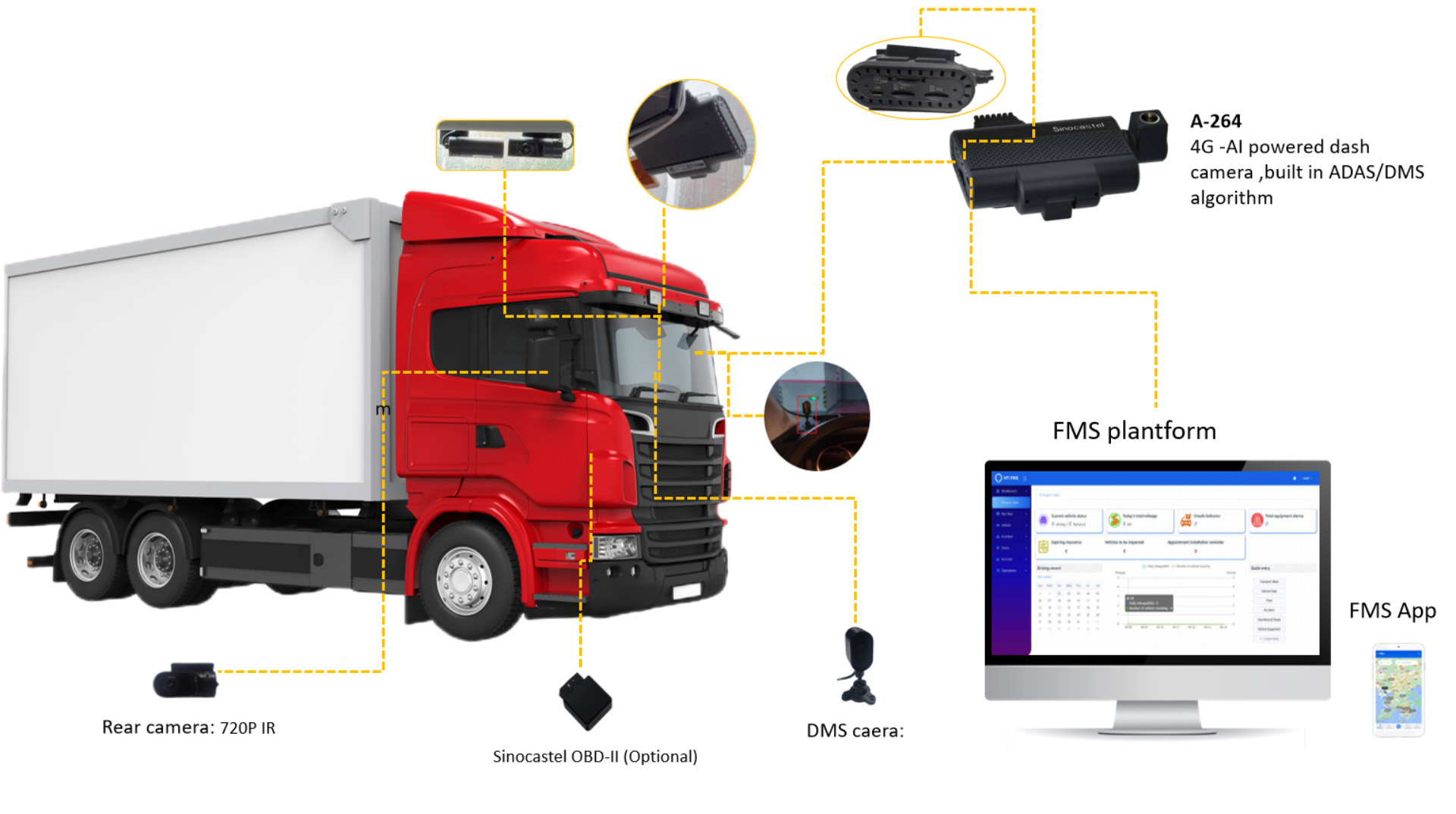

Video Telematics Solution
Application Scenarios
Fleet Management
Steamship Transportation
Yacht Security
Cold Chain Supply
Commercial Vehicle
Commercial Vehicle
Driving behavior Analyzed and Managment
- Over speeding
- Harsh acceleration
- Harsh breaking
- Excessive turning
- Rapid-lane changing
- High RPM alert
- Fatigue driving alarm
- Engine idling
- Crush
- Improve bad driving habits
- Provide actual data to support management
- Conduct risk and human resource management
- Establish safety indicators based on sudden acceleration, sharp turns, emergency lines and sudden braking.
- Drivers can be rewarded and punished based on report data
