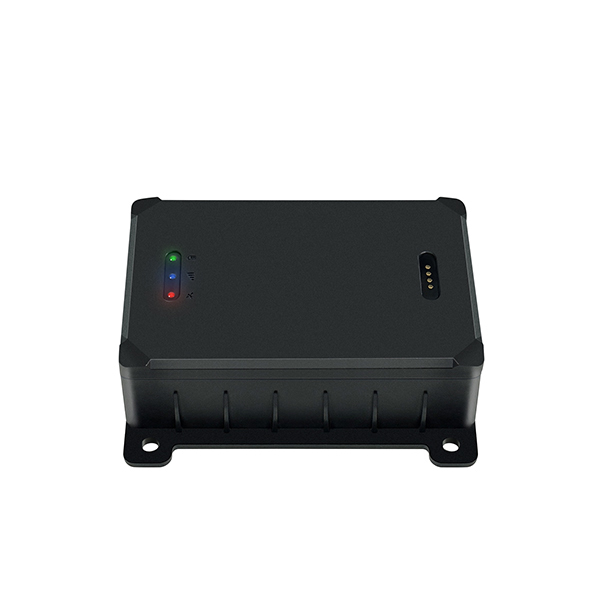

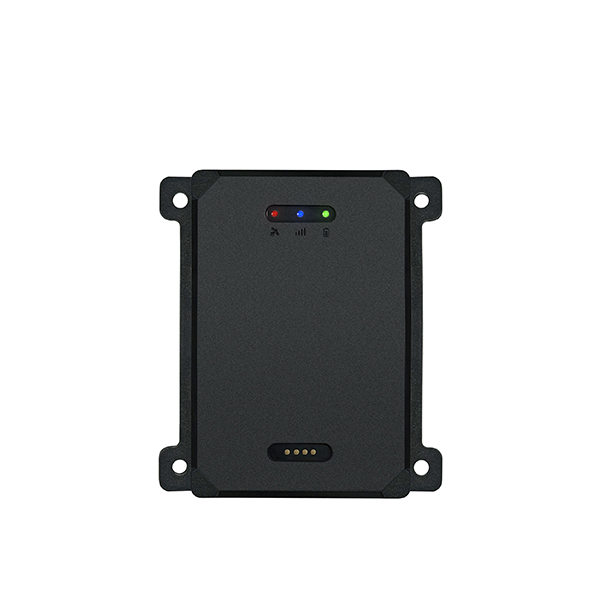

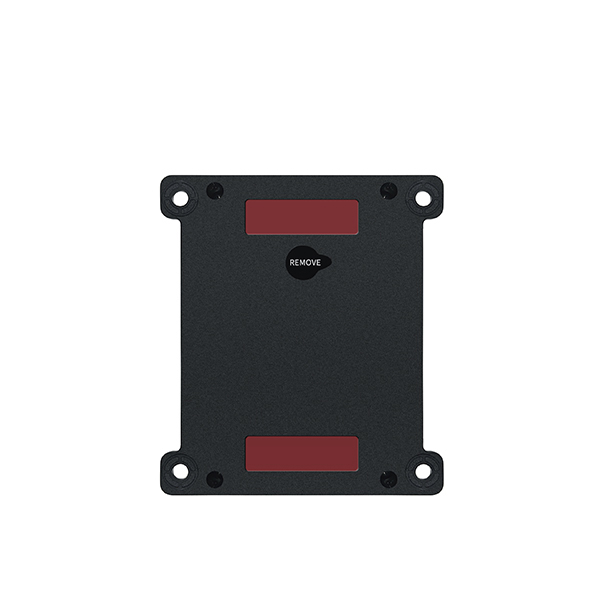

Magnetic Asset Tracker with Built in Rechargeable 10000mAH Battery
T – 234
T – 234 is a long-standing asset tracker with a built-in rechargeable 10000mAH battery and 4G connectivity. It comes with cost-effective solutions for a wide range of applications such as fleet management, container and trailer tracking, valuable asset tracking, auto finance, and car rental etc.
Products Categories
Get A Free Quote
- IP67 waterproof
- Mileage statistics
- Up to 5 years long standby
- Battery monitor
- Up to 64 circular regions Geo-fence
- Real-time tracking
- Store up to 96,000 pcs location data
- Driving behavior detection
- Speeding alarm
| Mechanical | Size | 108mm (L) x 65mm (W) x 35mm (H) | |
| Weight | 200g | ||
| Interface | Magnetic 4 pin port | Charging and configuration | |
| Data transmission | LTE and SMS | ||
| Positioning method | GNSS/A-GNSS/LBS | ||
| Storage | 8MB FLASH | ||
| Battery | Rechargeable lithium battery, 10000mAH/3.7V | ||
| Power consumption | Average: <100mA | ||
| Sleep mode: <10mA | |||
| GNSS | System: GPS/BDS/Glonass/Galileo | ||
| Channels: 66 | |||
| Sensitivity: -165dBm | |||
| Accuracy: 2.5m CEP | |||
| Time to first fix: | |||
| Cold start: <35s (typ.) | |||
| Hot start: <1s (typ.) | |||
| Cellular | T-234M (LTE Cat M1/Cat NB2, Global) | ||
| LTE Cat M1: | |||
| B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/ | |||
| B19/B20/B25/B26/B27/B28/B66/B85 | |||
| LTE Cat NB2: | |||
| B1/B2/B3/B4/B5/B12/B13/B18/B19 | |||
| B20/B25/B26/B28/B66/B71/B85 | |||
| GSM/GPRS: 850/900/1800/1900MHz | |||
| T-234LE (LTE Cat 1, EMEA) | |||
| LTE FDD: B1/B3/B5/B7/B8/B20 | |||
| GSM/GPRS: 900/1800MHz | |||
| T-234LSA (LTE Cat 1, Latin America/Australia) | |||
| LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 | |||
| GSM/GPRS: 850/900/1800/1900MHz | |||
| Network protocol: Embedded TCP/IP stack | |||
| Bluetooth | BLE 5.3, universal BLE sensor support | ||
| Light sensor | Removal detection | ||
| 3-axis Accelerometer | Motion detection, driving behavior detection | ||
| LED Indication | GNSS/Cellular/Battery indication | ||
| Antenna | Cellular | Internal | |
| GNSS | Internal | ||
| Bluetooth | Internal | ||
| Optional accessories | BLE tag | ||
| BLE temperature sensor | |||
| Environment | Working Temperature | -30℃ ~ +70℃ | |
| Storage Temperature | -40℃ ~ +85℃ | ||
| Humidity | 5%～95%（no fog） | ||
- Fleet management
- Asset tracking
- Car rental
- Logistics
