4G T-BOX with a Variety of IoV Applications
T-229

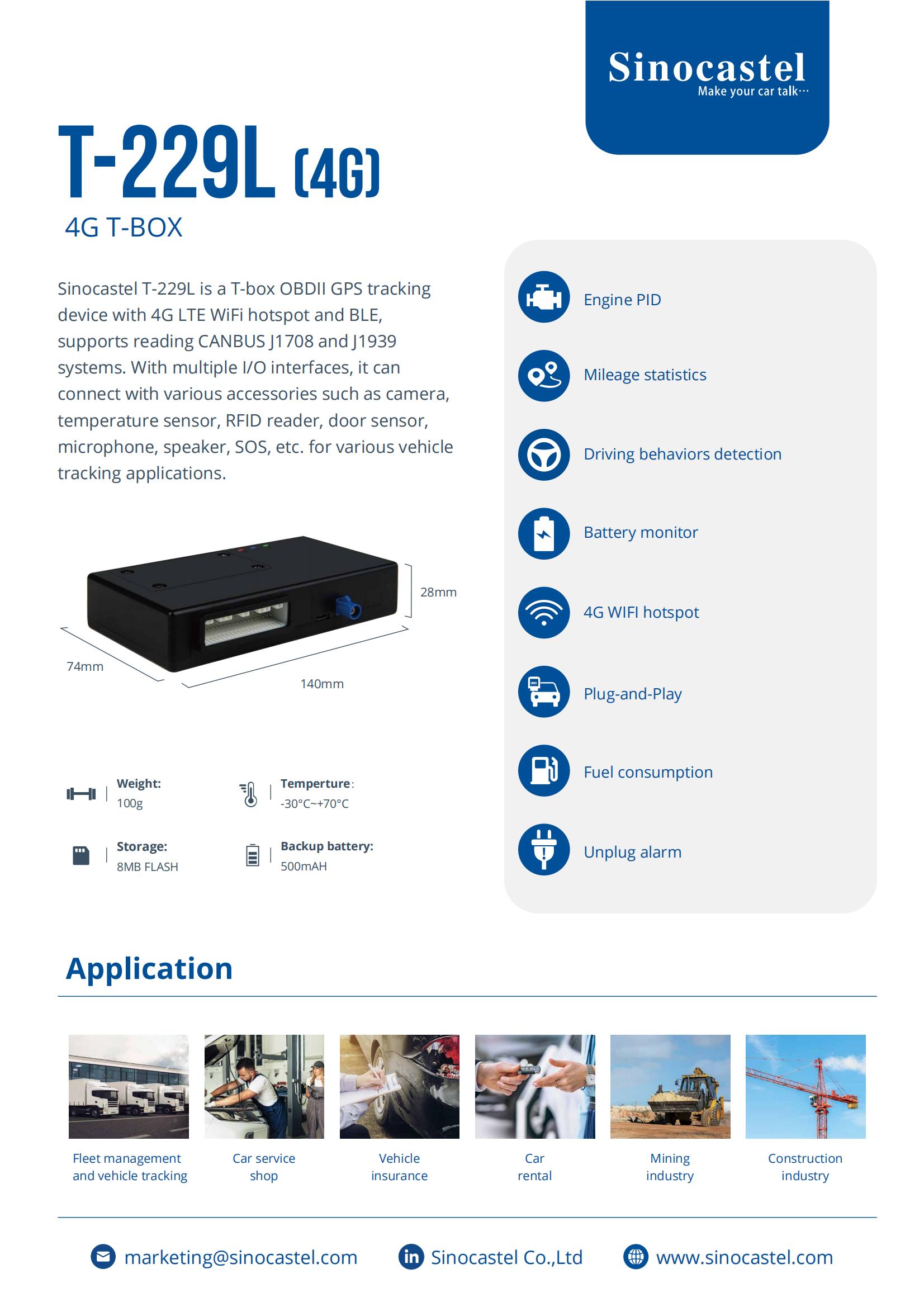

T-229 is a 4G T-BOX designed for a variety of IoV applications. It is able to monitor vehicle location, detect driving behavior, voice communication and remote control. It can extend various peripherals with multiple I/O interfaces, such as temperature sensor, door detection sensor and camera etc. Also it can act as an in-Vehicle WiFi hotspot, up to 8 WiFi enabled devices can be connected to share high speed 4G LTE network.

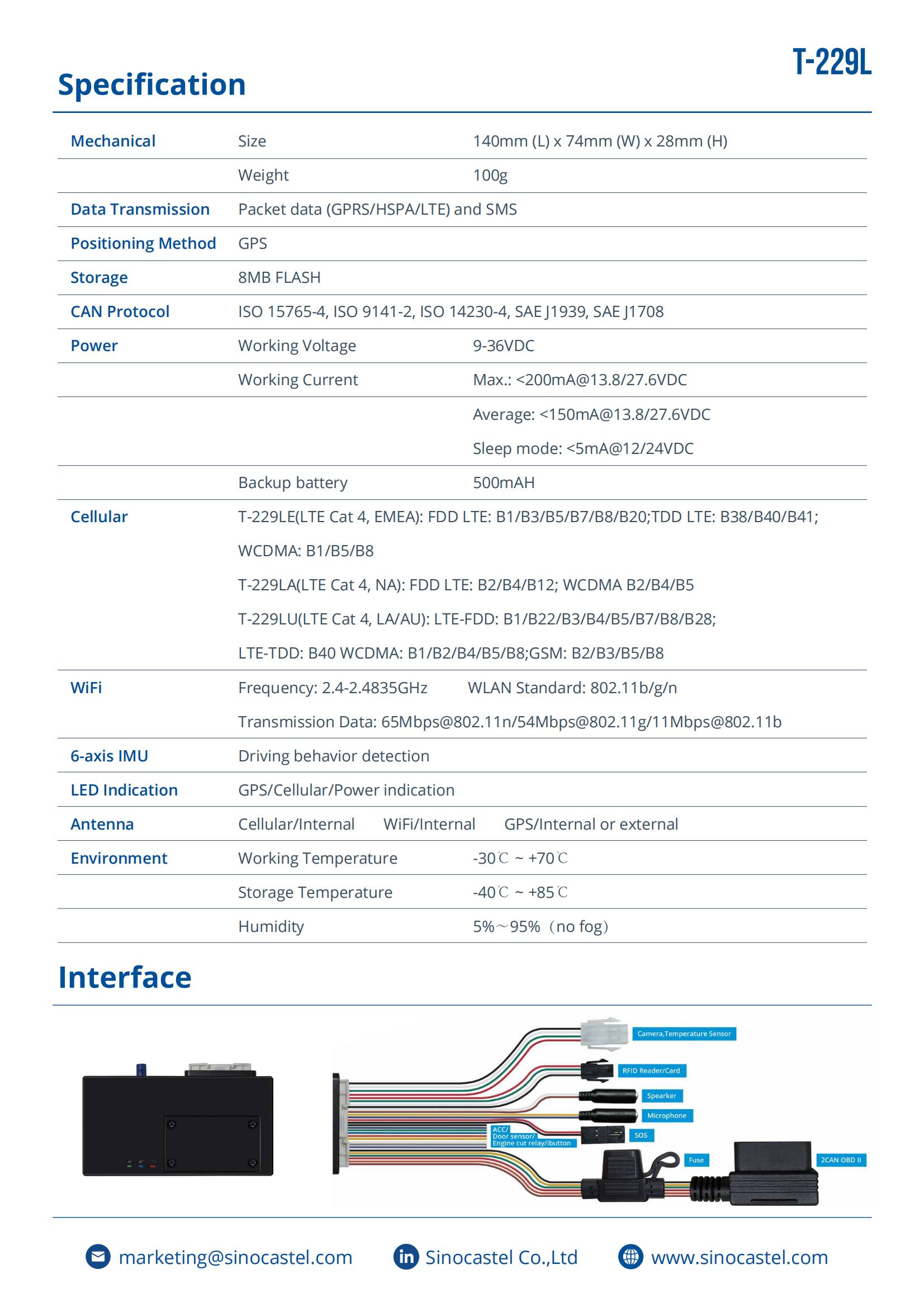

| Mechanical | Size | 140mm (L) x 74mm (W) x 28mm (H) |
| Weight | 100g | |
| Interface | Digital Input | 5 digital inputs |
| One for ignition detection input, one for SOS | ||
| button input, three for general use | ||
| Digital Output | 5 digital outputs | |
| One for relay control, four for general use | ||
| Analog Input | 3 analog input | |
| Engine | 2 high speed CAN bus | |
| Communication Port | One RS-232 port and one RS-485 for external | |
| device connection or one USB port for internet | ||
| access | ||
| Audio | One differential MIC input, one differential | |
| speaker output | ||
| Configuration Port | Micro-USB | |
| SIM Card Socket | Micro SIM, Push-Push type | |
| Data Transmission | Packet data (GPRS/HSPA/LTE) and SMS | |
| Positioning Method | GPS | |
| Storage | 8MB FLASH | |
| CAN Protocol | ISO 15765-4 | |
| ISO 9141-2 | ||
| ISO 14230-4 | ||
| SAE J1939 | ||
| SAE J1708 | ||
| Power | Working Voltage | 9-36VDC |
| Working Current | Max.: <[email protected]/27.6VDC | |
| Average: <[email protected]/27.6VDC | ||
| Sleep mode: <5mA@12/24VDC | ||
| Backup battery | 500mAH | |
| GPS | Receiving satellite frequency: | |
| 1575.42mhz (GPS L1) | ||
| Positioning time: | ||
| Cold start: about 23s (typ.) | ||
| Warm start: about 2s (typ.) | ||
| Hot start: <1s (typ.) | ||
| Positioning accuracy: | ||
| Horizontal position accuracy: 3m CEP (typ.) | ||
| Speed accuracy: 0.1m/s (typ.) | ||
| Receiving sensitivity: Trace: -165dbm (typ.) | ||
| Capture: -148 dbm (typ. Cold start) | ||
| Refresh frequency: 1Hz | ||
| Wi-Fi | Frequency : | |
| WLAN Standard: 802.11b/g/n | ||
| Transmission Data: | ||
| [email protected] | ||
| [email protected] | ||
| [email protected] | ||
| Cellular | Frequency : | |
| Frequency (T-229LE, Europe): | ||
| FDD LTE B1/B3/B5/B7/B8/B20 | ||
| TDD LTE B38/B40/B41 | ||
| WCDMA B1/B5/B8 | ||
| GSM 900/1800MHz | ||
| Frequency (T-229LA, US): | ||
| FDD LTE B2/B4/B12 | ||
| WCDMA B2/B4/B5 | ||
| Frequency (T-229LU, AU): | ||
| LTE-FDD: B1/B22/B3/B4/B5/B7/B8/B28; | ||
| LTE-TDD: B40 WCDMA: B1/B2/B4/B5/B8; | ||
| GSM: B2/B3/B5/B8 | ||
| Data: | ||
| LTE-FDD Max 150Mbps (DL)/50Mbps (UL) | ||
| LTE-TDD Max 130Mbps (DL)/35Mbps (UL) | ||
| HSPA+ Max 42Mbps (DL)/5.76Mbps (UL) | ||
| Network protocol: Embedded TCP/IP stack | ||
| 6-axis IMU | Driving behavior detection | |
| LED Indication | GPS/Cellular/OBD indication | |
| Antenna | Cellular | Internal |
| GPS | Internal or external | |
| WIFI | Internal | |
| Environment | Working Temperature | -30℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +85℃ | |
| Humidity | 5%～95%（no fog） |
- Fleet management
- Vehicle tracking
- Car rental
- Car insurance
- Mining industry
- Construction industry
